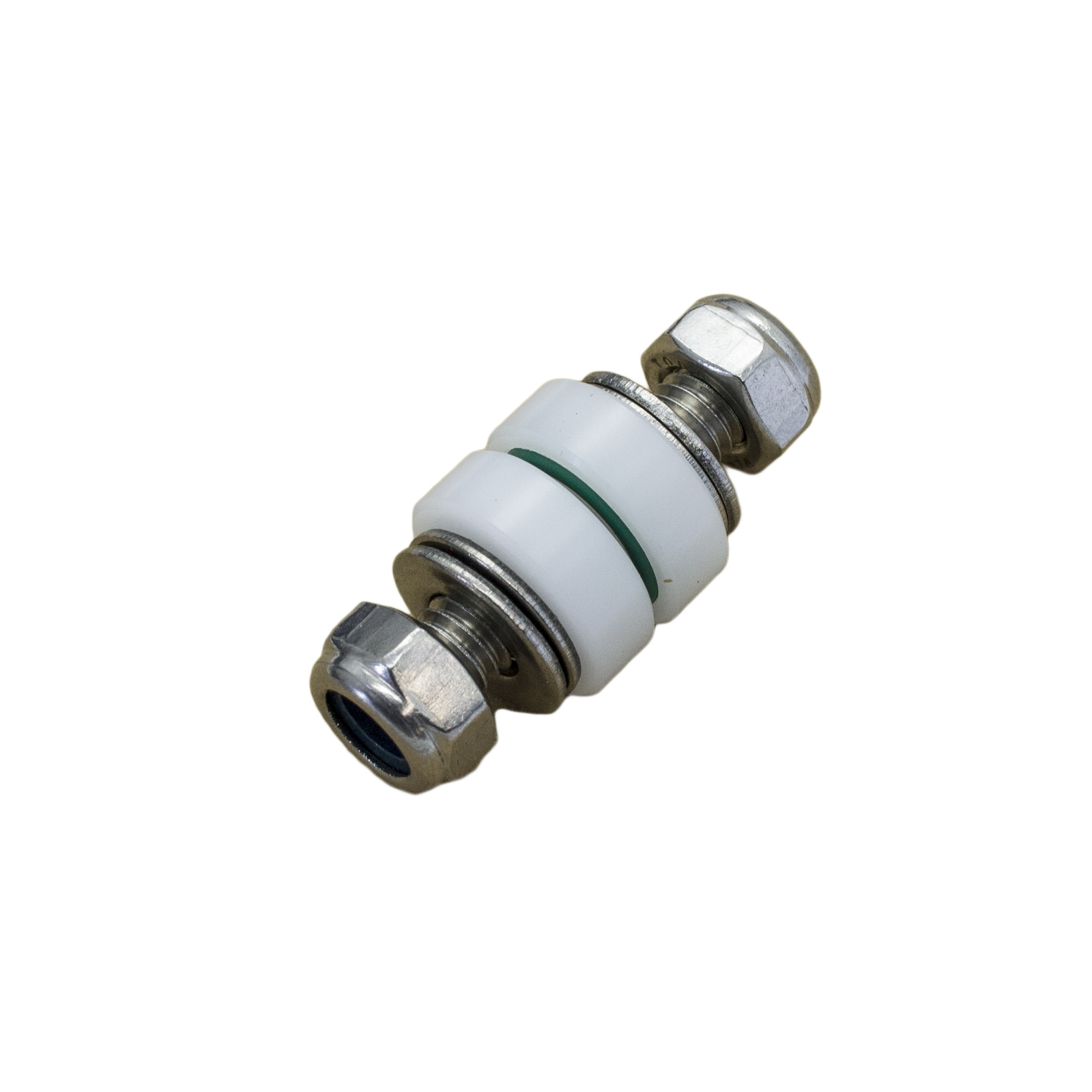

The TAARKS submersible electrical bulkhead terminal is used when power needs to be passed through a metal plate.
These fuel safe terminals are viton o-ring sealed and are perfect to pass power through a fuel tank hat to power fuel pumps. These are E85 compatible.
Specs:
- Plate Thickness: 1.4mm to 5mm
- Amperage: 0 to 40a
- Drill hole size: 8mm
Kit includes:
- 1x Stainless Steel M6 Stud
- 2x Stainless Steel Nyloc Nuts
- 4x Stainless Steel Washers
- 2x Plastic Insulators
- 2x Viton O-Rings
**SOLD INDIVIDUALLY, Price is for 1 terminal.
Note: To make these studs fully submersible a few wraps of teflon plumbing tape is required around the stud where it passes through the white plastic washers.
Electrical Bulkhead Terminal "Submersible" E85 Compatible
SKU: 403-047
BRAND: TAARKS
The TAARKS submersible electrical bulkhead terminal is used when power needs to be passed through a metal plate.
These fuel safe terminals are viton o-ring sealed and are perfect to pass power through a fuel tank hat to power fuel pumps. These are E85 compatible.
Specs:
- Plate Thickness: 1.4mm to 5mm
- Amperage: 0 to 40a
- Drill hole size: 8mm
Kit includes:
- 1x Stainless Steel M6 Stud
- 2x Stainless Steel Nyloc Nuts
- 4x Stainless Steel Washers
- 2x Plastic Insulators
- 2x Viton O-Rings
**SOLD INDIVIDUALLY, Price is for 1 terminal.
Note: To make these studs fully submersible a few wraps of teflon plumbing tape is required around the stud where it passes through the white plastic washers.
| SKU | 403-047 |
| Brand | TAARKS |
| Shipping Weight | 0.0300kg |
| Country of Origin | CN | MPN: | 200047 |
Bulkhead terminals
By: Mike Nelson on 15 September 2026Items work as required. Thanks for the quick service.
(5)
So easy to use.
By: John Behncke on 10 April 2025Such a great product. These terminals made building my own fuel pump hanger so much easier compared with other products on the market and they are so very cheap. Just drill an 8mm hole, insert the terminal and tighten.
(5)
Bulkhead terminal
By: Nick on 22 May 2024Good bit of kit, perfect for retrofitting efi pumps into carby tank pickups.
(5)
Amazing
By: Justin on 1 May 2024received this part the other day and it is a quality item.
(5)
Electrical bulkhead terminal
By: Martin Hewitt on 19 September 2019Good quality product, would be handy if sold in pairs.
(5)
