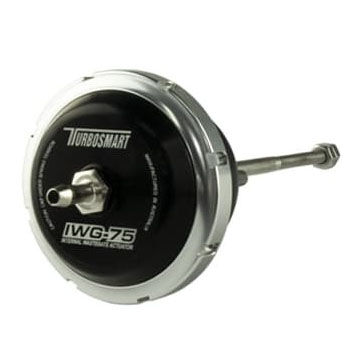

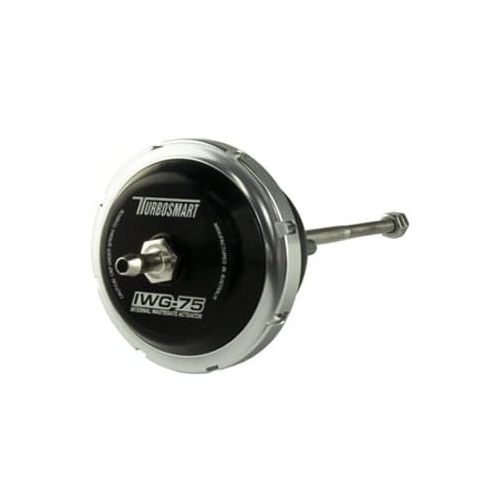

Turbosmart Single Port 150mm 1/4 UNF thread internal actuator. Rod ends sold seperately.
TS-0681-5142 1.0 Bar / 14 Psi
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
This is a Universal Single Port IWG75 Actuator supplied with a 150mm long 1/4 UNF thread for fitment on a wide variety of turbochargers. Some fabrication is likely required, including additional hardware such as clevis and brackets.
Some Applications:
S15 Front Cover GT2871R Turbo ( Bracket and Clevis (TS-0600-3001) Required
Turbosmart Universal Internal Actuator 14 Psi IWG75 "150mm"
SKU: 215-362
BRAND: Turbosmart
Turbosmart Single Port 150mm 1/4 UNF thread internal actuator. Rod ends sold seperately.
TS-0681-5142 1.0 Bar / 14 Psi
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
This is a Universal Single Port IWG75 Actuator supplied with a 150mm long 1/4 UNF thread for fitment on a wide variety of turbochargers. Some fabrication is likely required, including additional hardware such as clevis and brackets.
Some Applications:
S15 Front Cover GT2871R Turbo ( Bracket and Clevis (TS-0600-3001) Required
| SKU | 215-362 |
| Brand | Turbosmart |
| Shipping Weight | 0.5000kg |
| Country of Origin | AU | MPN: | 0 280 130 063 |
