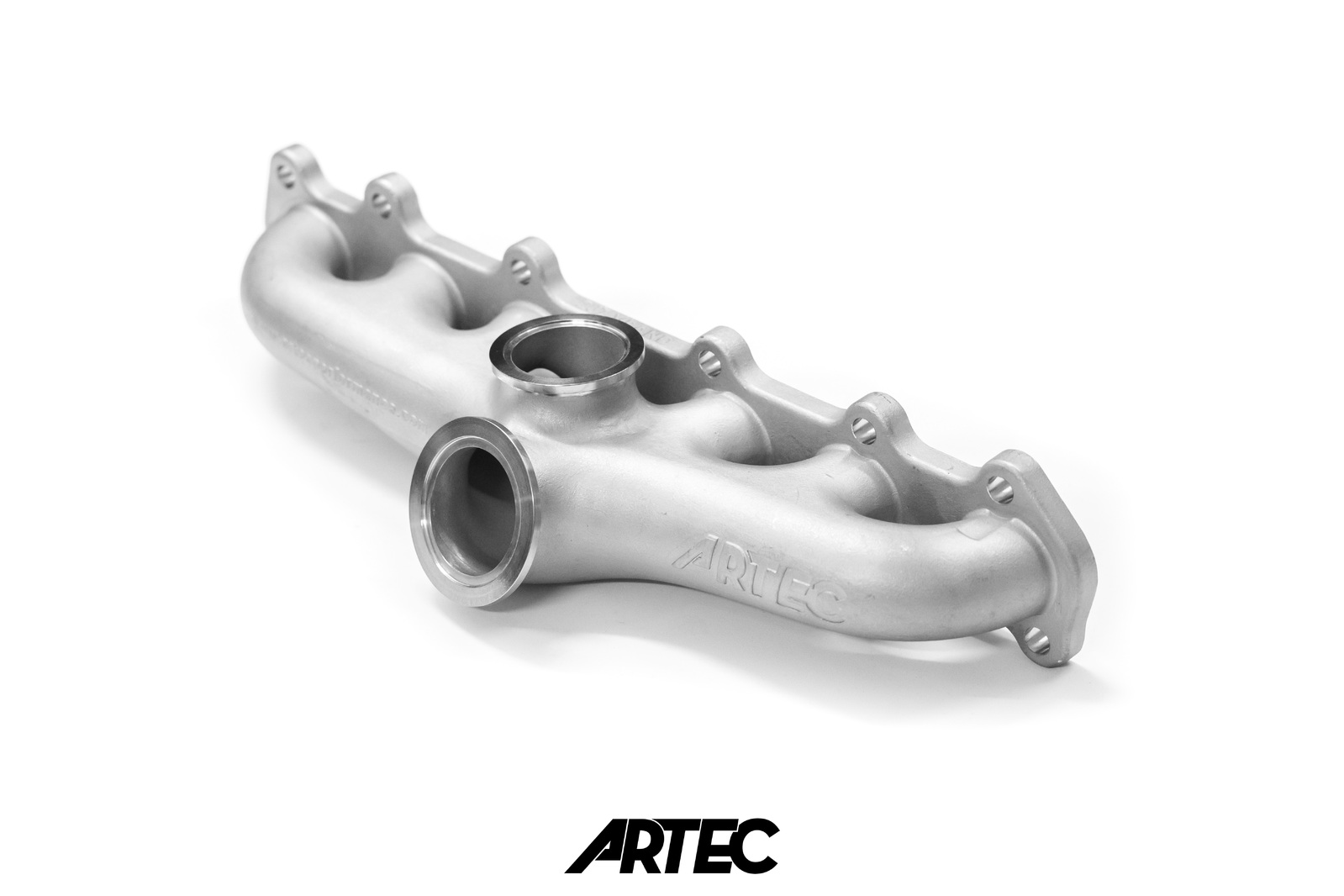

The 2JZ-GTE compact manifold has been designed for guys wanting up to 900hp whilst keep as much response as possible.

Very easy access to all the nuts to reduce install time and cursing. All OEM fasteners can be used.

This manifold will accept turbos using a 50-55mm V-band inlet from as little at a G25-550 to G35-1050 to 6466 to 6870 all the way to a massive Xona 115-69 (1200hp) Turbos.

The wastegate port also uses our 44/45/46mm flanges to make it easy to source a wastegate, but to also allow for different designs, the manifold if you cut the standard flange off and weld a 50mm flange on will flow the full amount of a 50mm wastegate.

The manifold has been been designed to flow well above any other compact designs on the market and has been proven to hold flawless boost control using a 45mm wastegate paired with a Xona 76mm turbo at 27psi .

SKU 215-372
Brand Artec
Shipping Weight 6.1900kg
MPN: 2JZ-GTE-VBAND-EX
