Genuine Nissan heater and coolant hoses.
Use the diagrams above to locate the required hoses, fill the QTY's to the right to order the required hoses.

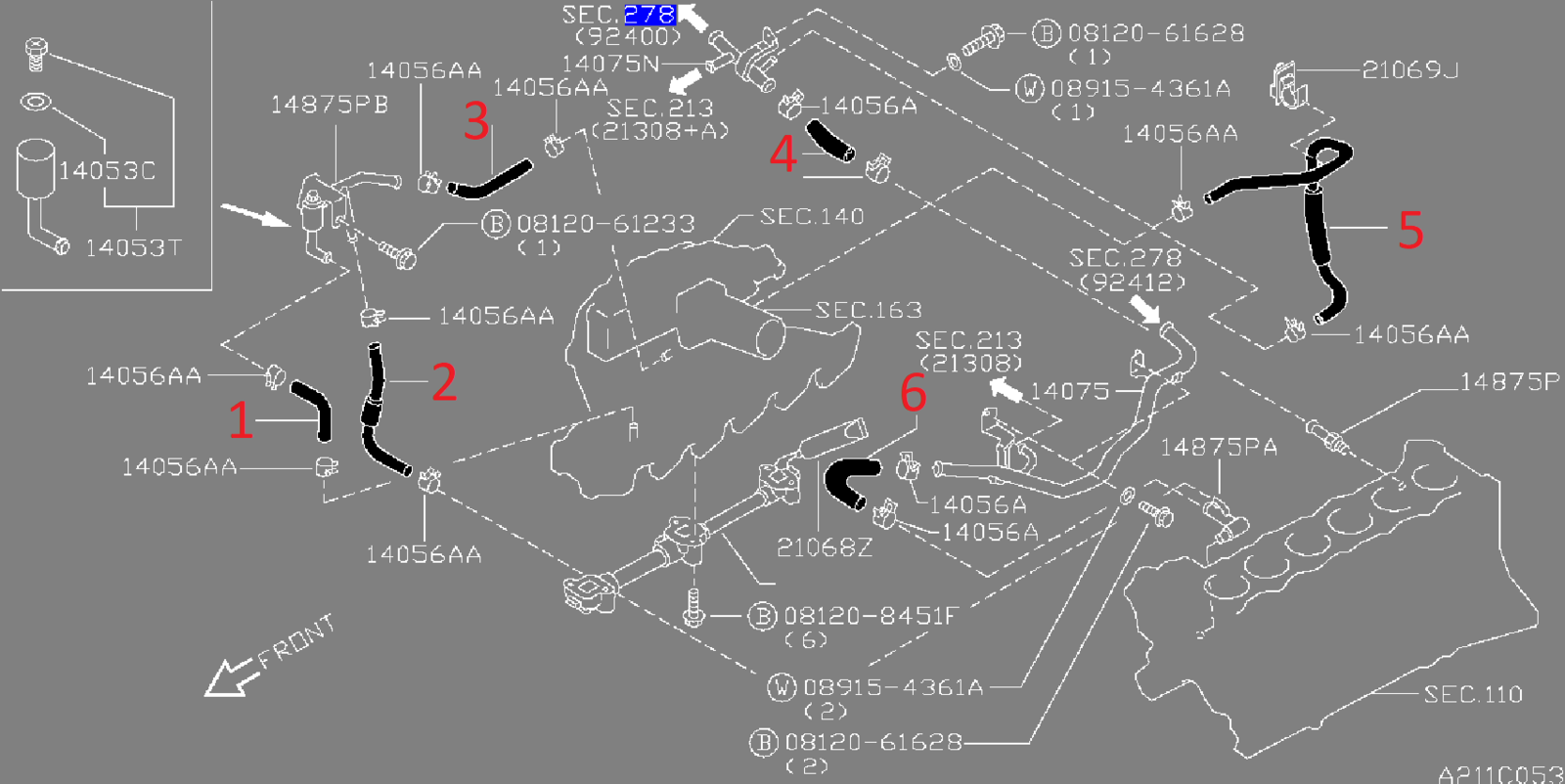

Diagram 1
Hose 1 - Connects Intake Plenum to the Bottom of the Bleed Point "Years: 01/1994 - 03/1994"
Hose 1a - Connects Intake Plenum to the Bottom of the Bleed Point "Years: 03/1994 - onwards"
Hose 2 - Connects the Bleed Point to the Side of the Block
Hose 3 - Connects the Top of the Bleed Point to the Under Side of the Plenum
Hose 4 - Connects the Metal "4 way" Piece at the Back of the Back of the Block
Hose 5 - Connects the Metal "4 way" Piece to the Plenum
Hose 6 - Connects the Metal Pipe under the Plenum to the Side of the Block
Diagram 2
Hose 7 - Connects Turbo Water Hardline to Rear of Intake Runner
Diagram 3
Hose 8 - Oil Cooler Hose Upper
Hose 9 - Oil Cooler Hose Lower
Diagram 4
Hose 10 - Top Heater Hose from Engine to Firewall Joiner
Hose 11 - Bottom Heater Hose from Engine to Firewall Joiner "Years: 08/1993 - 03/1997 (Manual & Auto)"
Hose 12 - Top Heater Hose from Firewall Joiner to Heater Core
Hose 13a - Bottom Heater Hose from Firewall Joiner to Heater Core
Application:
C34 Laurel RB25DET
Heater and Coolant Hoses (RB25DET) "C34"
SKU: 202-108
BRAND: Genuine Nissan
Customise Your Purchase
![Hose 1 - R33 RB25](https://www.efisolutions.com.au/assets/images/Google/202-098.jpg)
![Hose 1a - R33 RB25 **DISCONTINUED**](https://www.efisolutions.com.au/assets/images/Google/202-093.jpg)
![Hose 2 - R33 RB25](https://www.efisolutions.com.au/assets/images/Google/202-099.jpg)
![Hose 3 - R33/R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-091.jpg)
![Hose 4 - R33/R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-096.jpg)
![Hose 5 - R33 RB25 **DISCONTINUED**](https://www.efisolutions.com.au/assets/images/Google/202-094.jpg)
![Hose 6 - R33/R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-095.jpg)
![Hose 7 - R33 RB25](https://www.efisolutions.com.au/assets/images/Google/202-092.jpg)
![Hose 8 - R33/R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-101.jpg)
![Hose 9 - R33/R34 "RB25"](https://www.efisolutions.com.au/assets/images/Google/202-100.jpg)
![Hose 10 - R33 RB25](https://www.efisolutions.com.au/assets/images/Google/202-104.jpg)
![Hose 11 - R33 RB25](https://www.efisolutions.com.au/assets/images/Google/202-105.jpg)
![Hose 12 - R33 "RB25" & R33, R34, AWC34 "RB26"](https://www.efisolutions.com.au/assets/images/Google/202-106.jpg)
![Hose 13a - R33 RB25](https://www.efisolutions.com.au/assets/images/Google/202-112.jpg)
Genuine Nissan heater and coolant hoses.
Use the diagrams above to locate the required hoses, fill the QTY's to the right to order the required hoses.
Diagram 1
Hose 1 - Connects Intake Plenum to the Bottom of the Bleed Point "Years: 01/1994 - 03/1994"
Hose 1a - Connects Intake Plenum to the Bottom of the Bleed Point "Years: 03/1994 - onwards"
Hose 2 - Connects the Bleed Point to the Side of the Block
Hose 3 - Connects the Top of the Bleed Point to the Under Side of the Plenum
Hose 4 - Connects the Metal "4 way" Piece at the Back of the Back of the Block
Hose 5 - Connects the Metal "4 way" Piece to the Plenum
Hose 6 - Connects the Metal Pipe under the Plenum to the Side of the Block
Diagram 2
Hose 7 - Connects Turbo Water Hardline to Rear of Intake Runner
Diagram 3
Hose 8 - Oil Cooler Hose Upper
Hose 9 - Oil Cooler Hose Lower
Diagram 4
Hose 10 - Top Heater Hose from Engine to Firewall Joiner
Hose 11 - Bottom Heater Hose from Engine to Firewall Joiner "Years: 08/1993 - 03/1997 (Manual & Auto)"
Hose 12 - Top Heater Hose from Firewall Joiner to Heater Core
Hose 13a - Bottom Heater Hose from Firewall Joiner to Heater Core
Application:
C34 Laurel RB25DET
SKU | 202-108 |
Brand | Genuine Nissan | MPN: | 202-108 |
