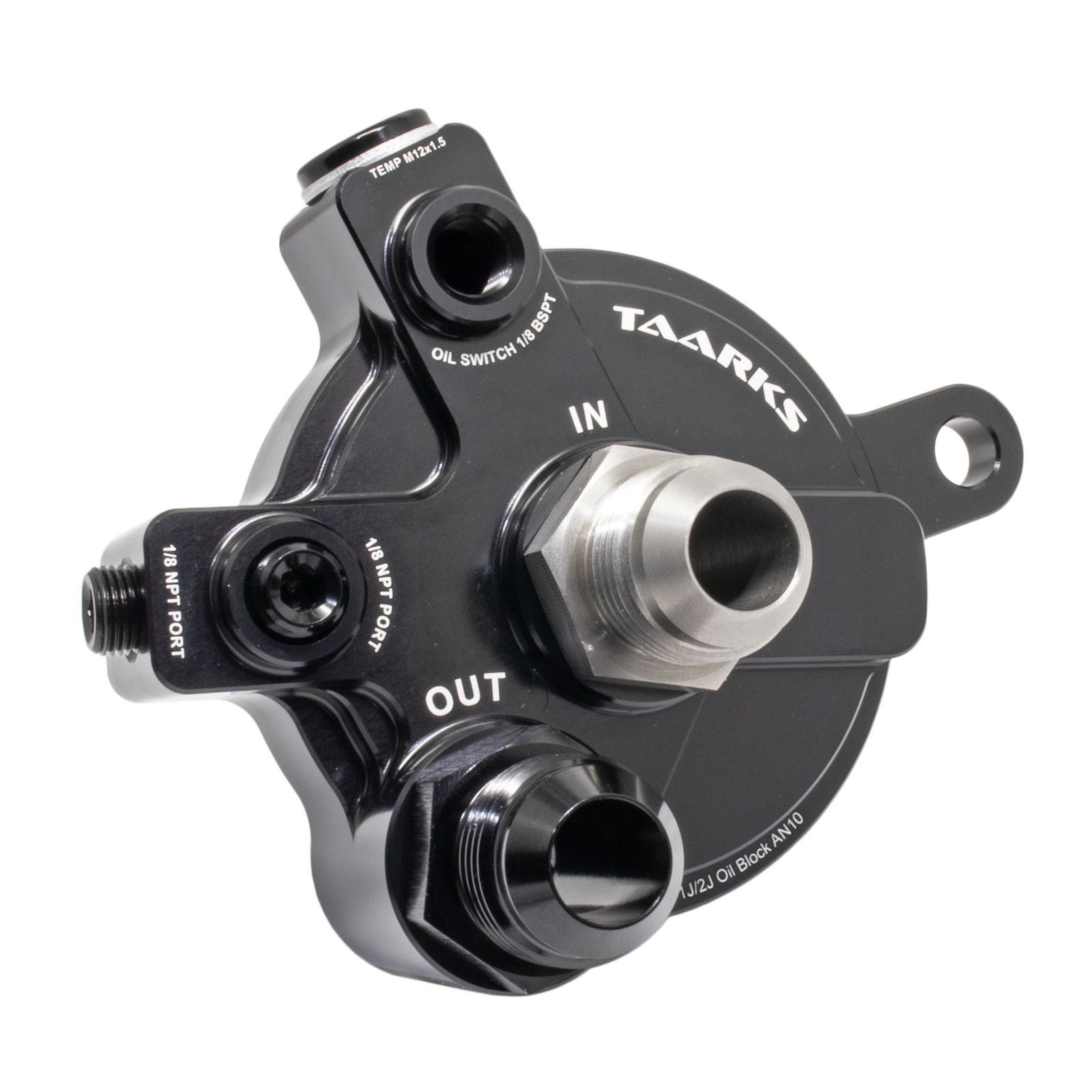

This is a direct replacement for the standard 1JZ & 2JZ oil filter block / oil cooler, this allows you to run an oil filter relocator and/or oil cooler without fear of the screw on type adapters leaking.

These have also been designed with extra sensors / gauges in mind, they have an additional 2x 1/8" NPT ports & 1x M12x1.5 temp sensor port on top of the factory sensor port.

Benefits over other designs:
These use standard type o-rings that are easily found at most bearing and seal shops if they ever need replacing. No gaskets required.
Laser etched with oil flow direction.
CNC Machined from 6061-T6 Billet aluminum.
Anodised to stop corrosion

The kit includes:

  • 1x Oil Block (Black)
  • 1x AN10 ORB Fitting (Black)
  • 1x AN10 ORB Mouting Stud (Stainless Steel)
  • 2x 1/8" NPT Plug
  • 1x M12x1.5 Plug
  • 2x Viton O-rings

**Sensors are not included.

Application:
Fits Toyota 1JZ Engines
Fits Toyota 2JZ Engines

SKU 404-076
Brand TAARKS
Shipping Weight 0.5100kg
MPN: 100045-BLK
