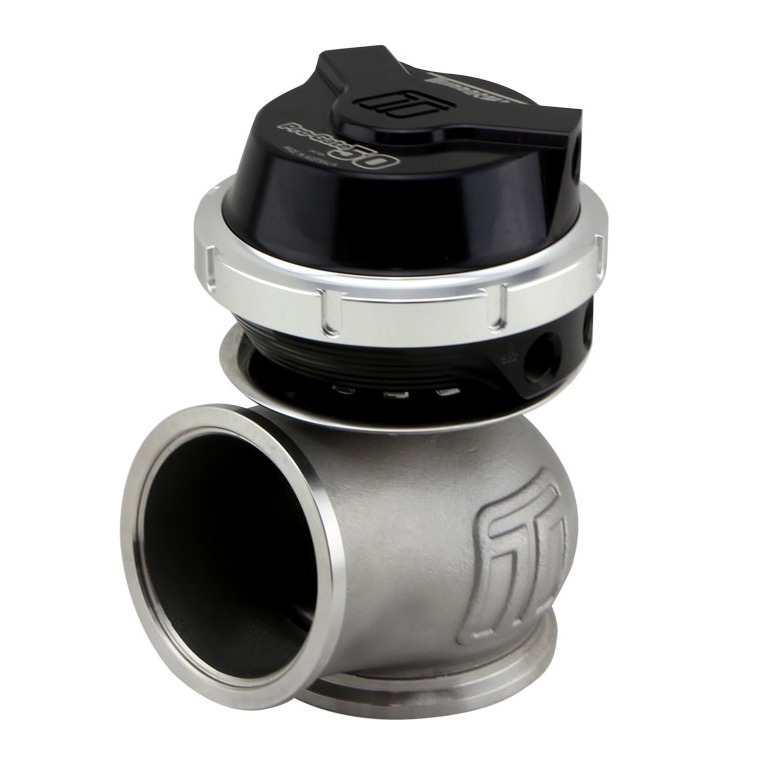

The Turbosmart GenV ProGate50 50mm External Wastegate is designed for high-performance turbocharged applications requiring precise and reliable boost control. Featuring Turbosmart's latest GenV technology, the ProGate50 offers industry-leading flow capacity, excellent thermal performance and long-term durability in demanding street, circuit, drag racing and motorsport environments.

Supplied in a black finish and pre-configured with a 14psi spring, this wastegate is suitable for a wide range of turbocharged engine combinations including Nissan RB25DET, RB26DETT, SR20DET, Toyota 2JZ-GTE, Ford Barra Turbo and LS-based turbo builds. The 50mm valve size provides excellent boost control on high-horsepower applications where smaller wastegates may become restrictive.

Part Number: TS-0554-1012.

The GenV WG50 ProGate50 External Wastegate is a Motorsport proven, cost effective external wastegate - The Highest Flowing 50mm External Wastegate in the World.

The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground up rework of a classic and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate like it.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360 degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Available In
Black, Blue, Red and Purple
Wastegate Position Sensor Version & Upgrade
Compressed Gas (ex: Co2) Version

Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Nitronic 60 Valve Guide & High Temp 347 SS Body
17/7 PH Stainless Steel Springs
Liquid Actuator Cooling Option
Strap Type V-band clamps
User Adjustable Actuator Position
Modular Design for Actuator Interchangeability

SUPPLIED WITH
GenV Wastegate unit
All Springs Included
3,5,7.14psi (1 Inst. As per Description)
Locking Collar Tool
GenV SS316 Valve seat
Strap Type V-Bands
Inlet & Outlet Weld Flanges
Hose Tail & Blank Fitting Kit
Turbosmart Decal

FAQs

What spring pressure is supplied?

This wastegate is configured with a 14psi spring and includes additional springs for further boost control options.

Is this suitable for high horsepower turbo builds?

Yes. The GenV ProGate50 is designed for high-flow turbocharged applications and is commonly used in street, race and drag racing vehicles.

Does this include mounting hardware?

Yes. V-band clamps, weld flanges, fittings and springs are supplied with the wastegate.

Can this replace a Gen4 ProGate50?

Yes. The GenV range is designed as a direct-fit upgrade for existing Gen4 Turbosmart wastegates.
