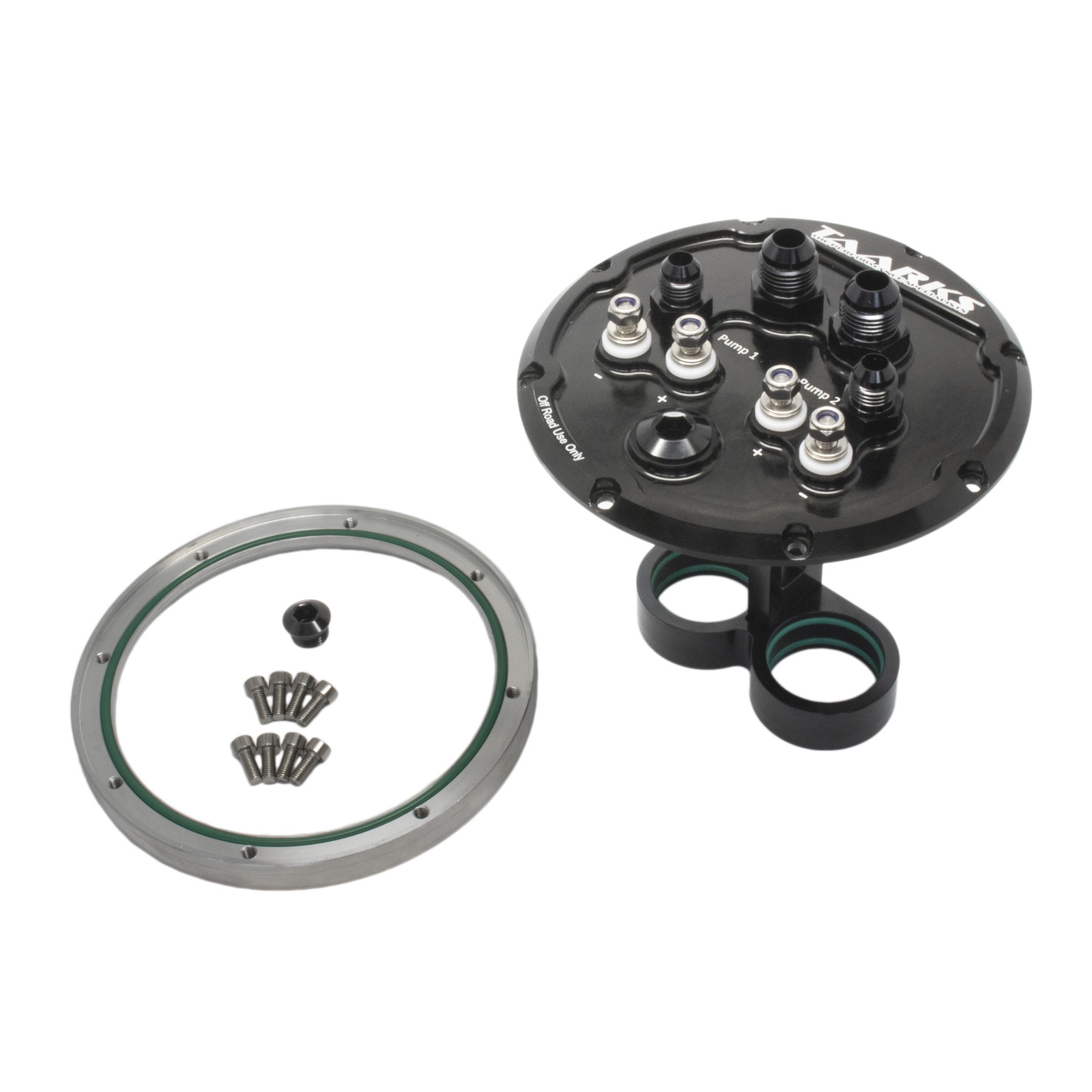

This fuel pump hanger is perfect for custom tanks. As used in our surge tanks.

The hanger comes with an aluminum or steel weld on flange for easy installation into fuel cells or custom surge tanks.

  • Suits a single or twin 38mm pumps
  • Machined from billet 6061-T6 aluminum
  • Insulated pumps to protect against vibration and reduce noise
  • Anodised gloss black to support Ethanol fuels and protect against corrosion
  • Unique electrical connectors with teflon insulators and o-ring seals to prevent leaks
  • All stainless steel nuts, bolts and washers.
  • Laser etched top plate
  • Rubber insulation boots for electrical terminals
  • Viton o-rings used throughout
  • Suitable for tanks with a depth of 190mm - 290mm (use drop down box above to select tank depth)


  • Each pump outlet has AN6 (-6) fittings.
  • The other 3 ports are all AN8 (-8) fittings.
  • The fittings are all ORB (o-ring sealed) fittings.
  • 3/8" Internal barbs for fuel pump connection.

For Techincal Dimensional Drawings Make A Selection From The Drop Down Menu And Click On Pictures.

SKU 407-021-P
MPN: 407-021-P

High quality

30 March 2021
I was looking for a factory fuel pump cradle for a fuel tank/surge tank system that im building and this came up. This is such a cool product and is made to such a high standard and compliments my build well!!. Highly recommended
