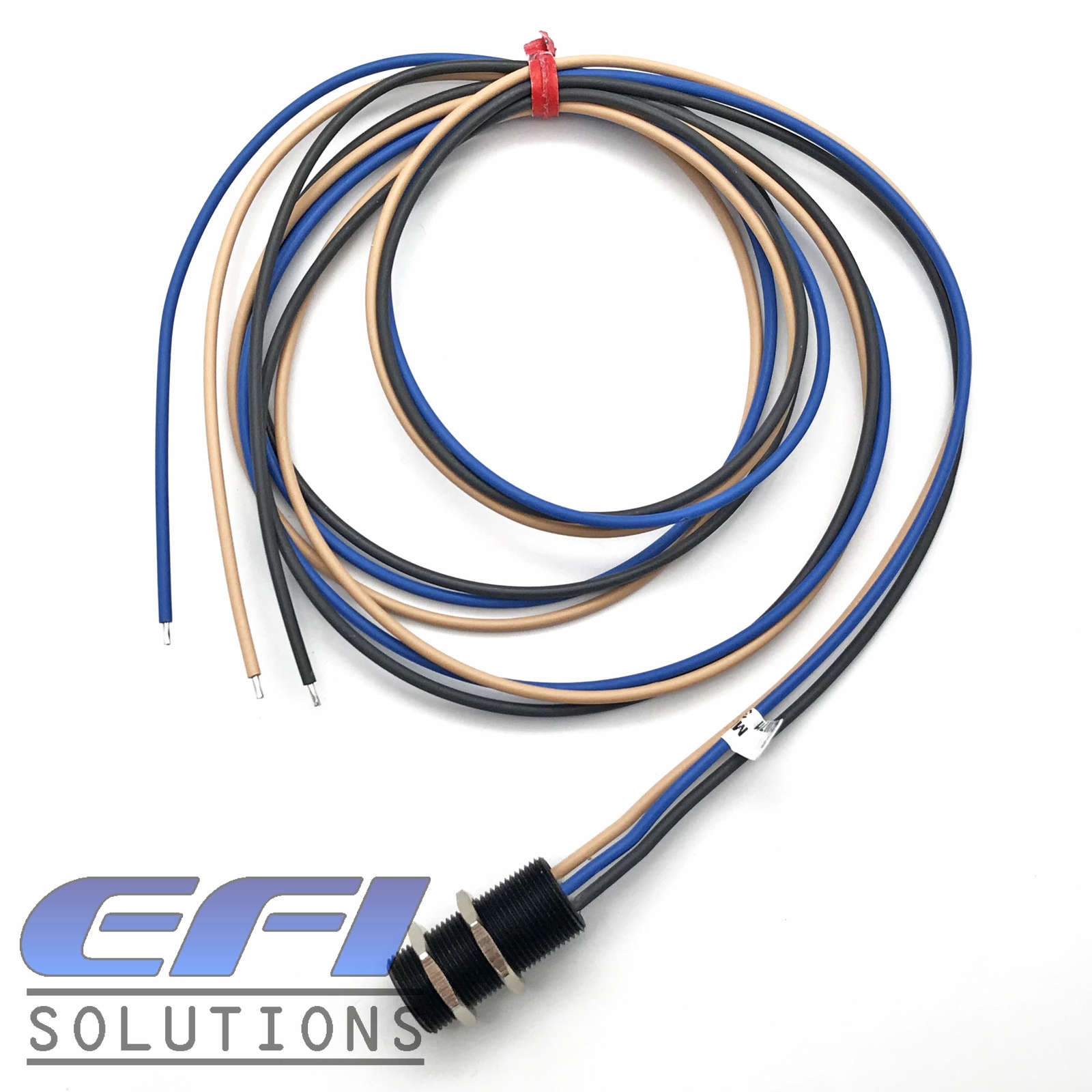

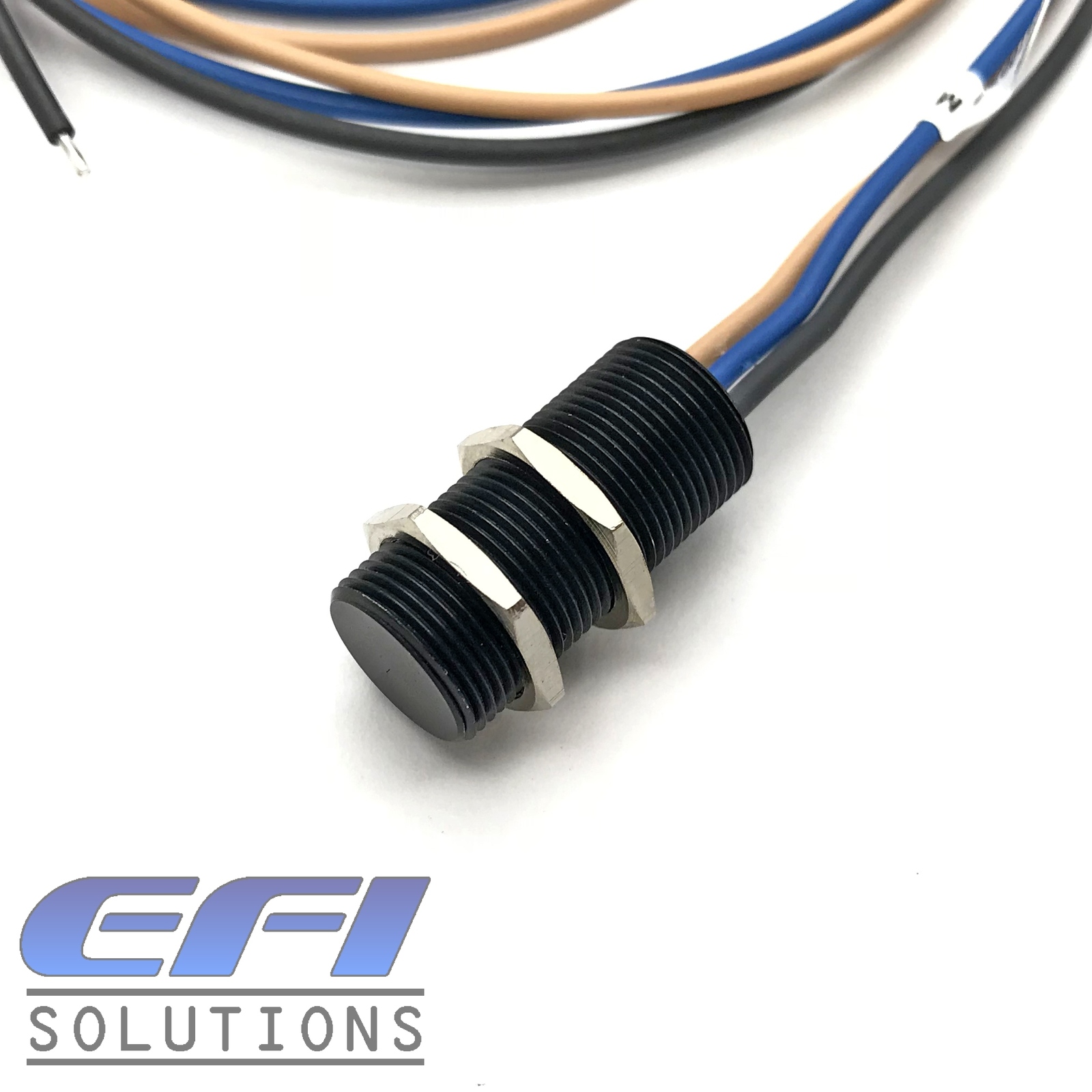

Genuine ZF / Cherry hall sensor.

Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.

Great for use with crank triggers and cam signals.

2x Locking nuts included.

The PDF Datasheet Can Be Found Above

Info:
Thread = 15/32"-32
Lead Length = 1m (20 AWG)
Voltage = 5v - 24v
Max Current Draw = 6 mA
Maximum Speed Detection = 15 kHz

Features:
From near zero speed up to 15 kHz sensing capability
10 bit dynamic threshold direction offers:
Automatically adjusting magnetic range
Self-compensating to target geometry
Compatible with unregulated power supply
ROHS compliant
IP67
Typical air gap of 1.5 mm*
​Aluminum Body

Typical Applications:
Engine Speed
Speedometers
Anti-lock braking systems
Exercise equipment
CNC machine tools

SKU 104-016
Brand ZF / Cherry
Shipping Weight 0.0200kg
MPN: GS100701
