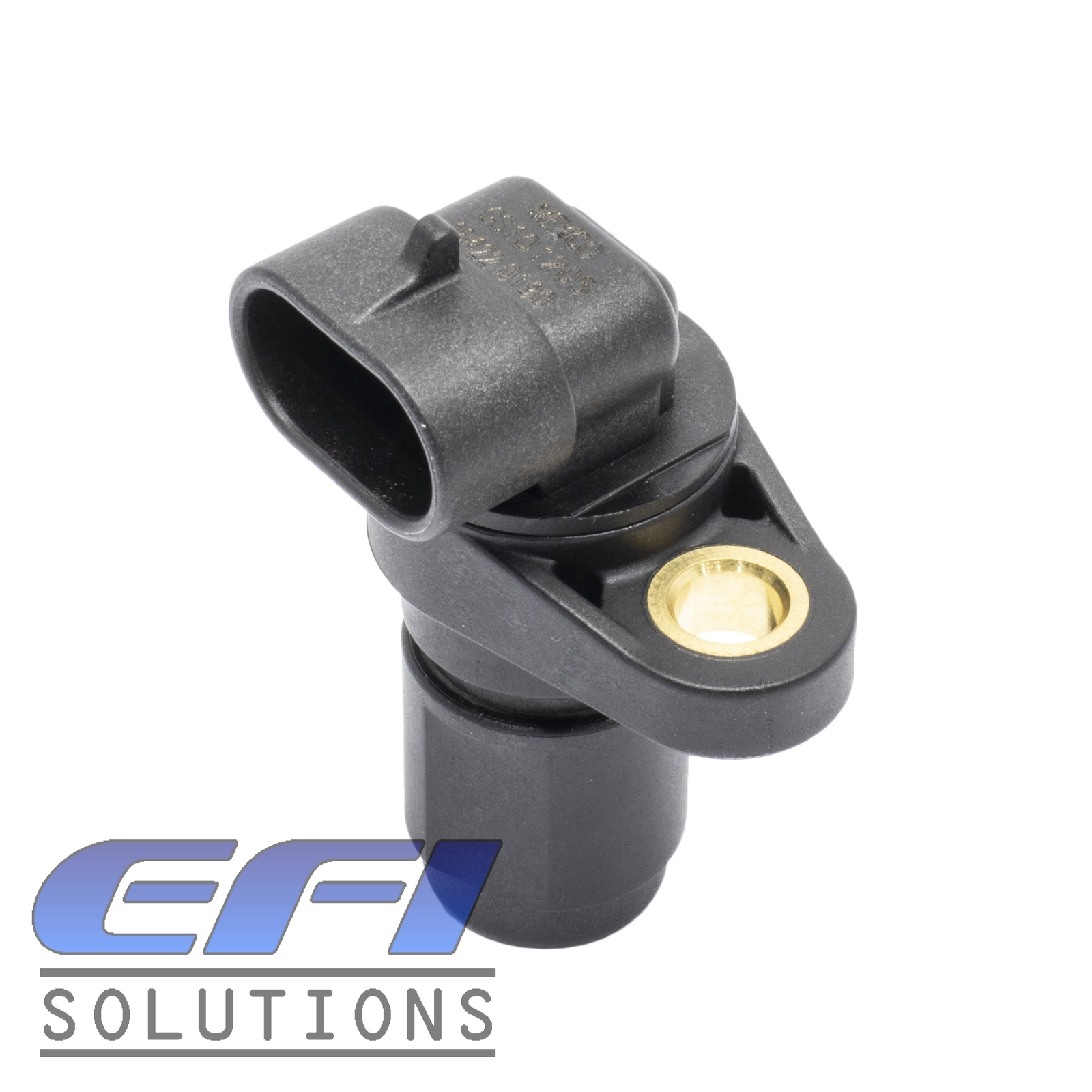

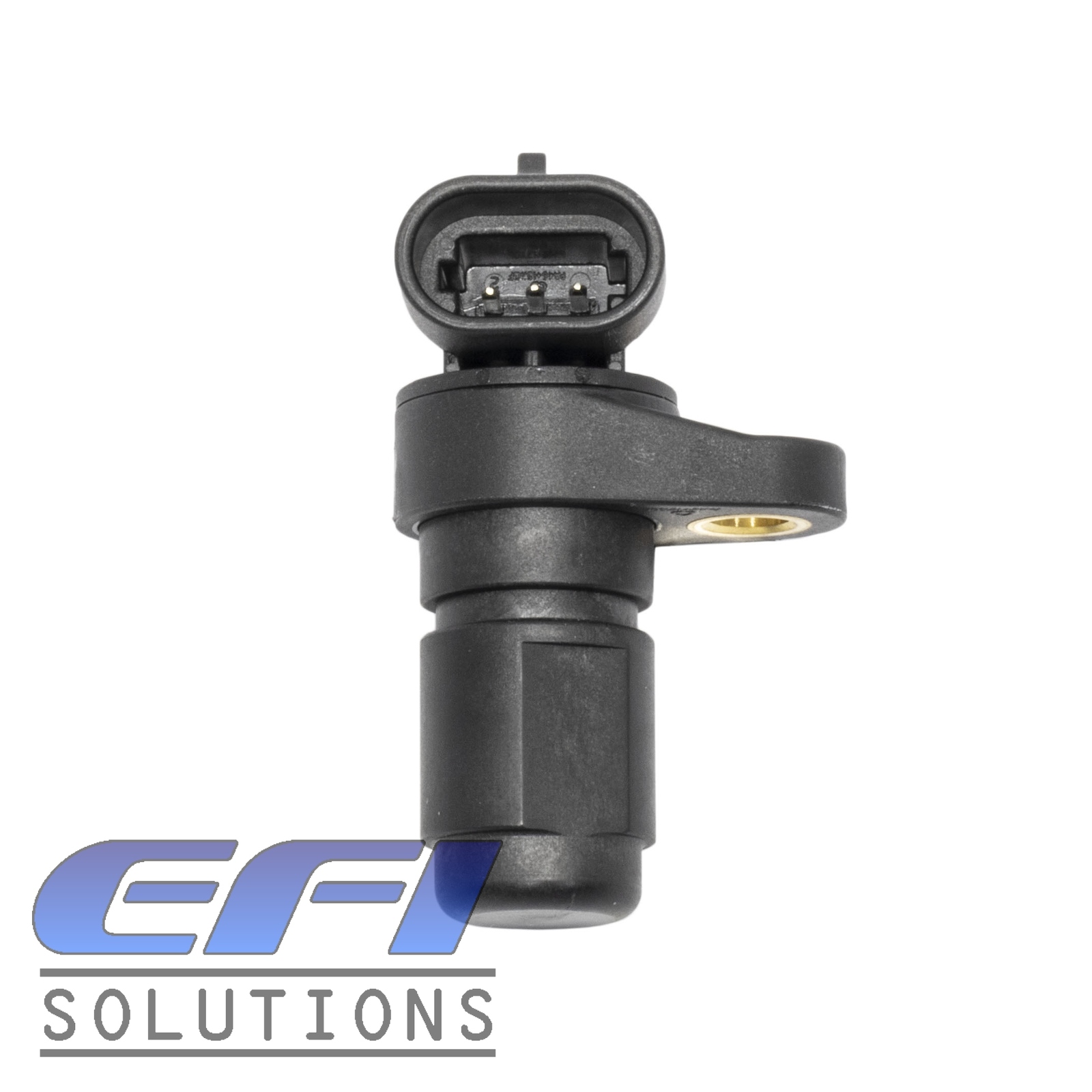

Genuine ZF / Cherry hall sensor.

Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.

Great for use with crank triggers and cam signals.

The PDF Datasheet Can Be Found Above

Info:
Connector = Delphi Metri-Pack 150
Voltage = 5v - 24v
Max Current Draw = 6 mA
Maximum Speed Detection = 15 kHz
Operating Temp: -40degC to 140degC (up to 150degC with reduced performance)

Features:
From near zero speed up to 15 kHz sensing capability
Plastic flange-mount housing
Resistant to fuels, solvents, and lubricants associated with engines, transmissions, brakes and chassis systems
ROHS compliant
IP67
Typical air gap of 1.5 mm*


Typical Applications:
Engine Speed
Speedometers
Anti-lock braking systems
Exercise equipment
CNC machine tools

MOTEC PART #59110

SKU 104-031
Brand ZF / Cherry
Shipping Weight 0.0300kg
MPN: GS101205
