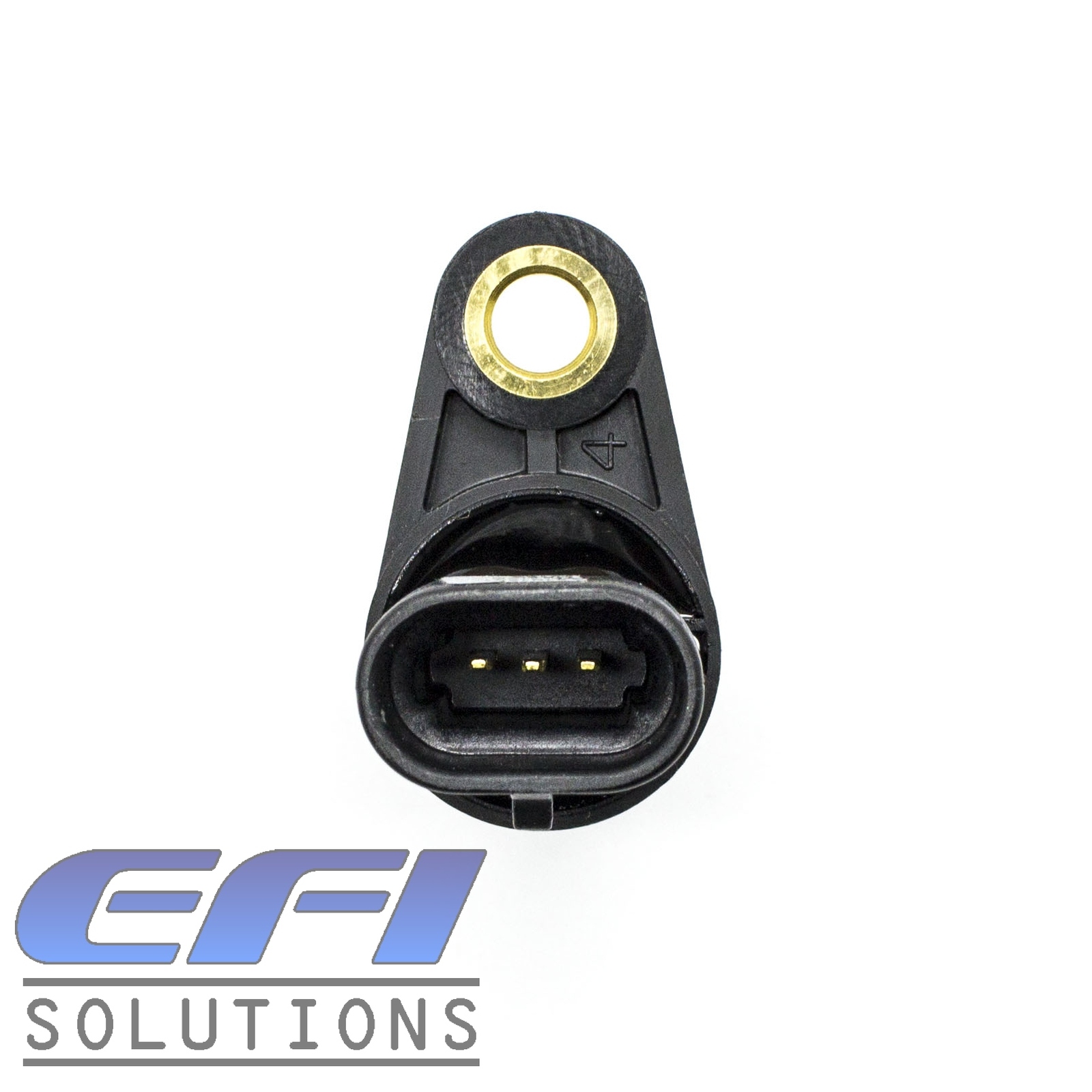

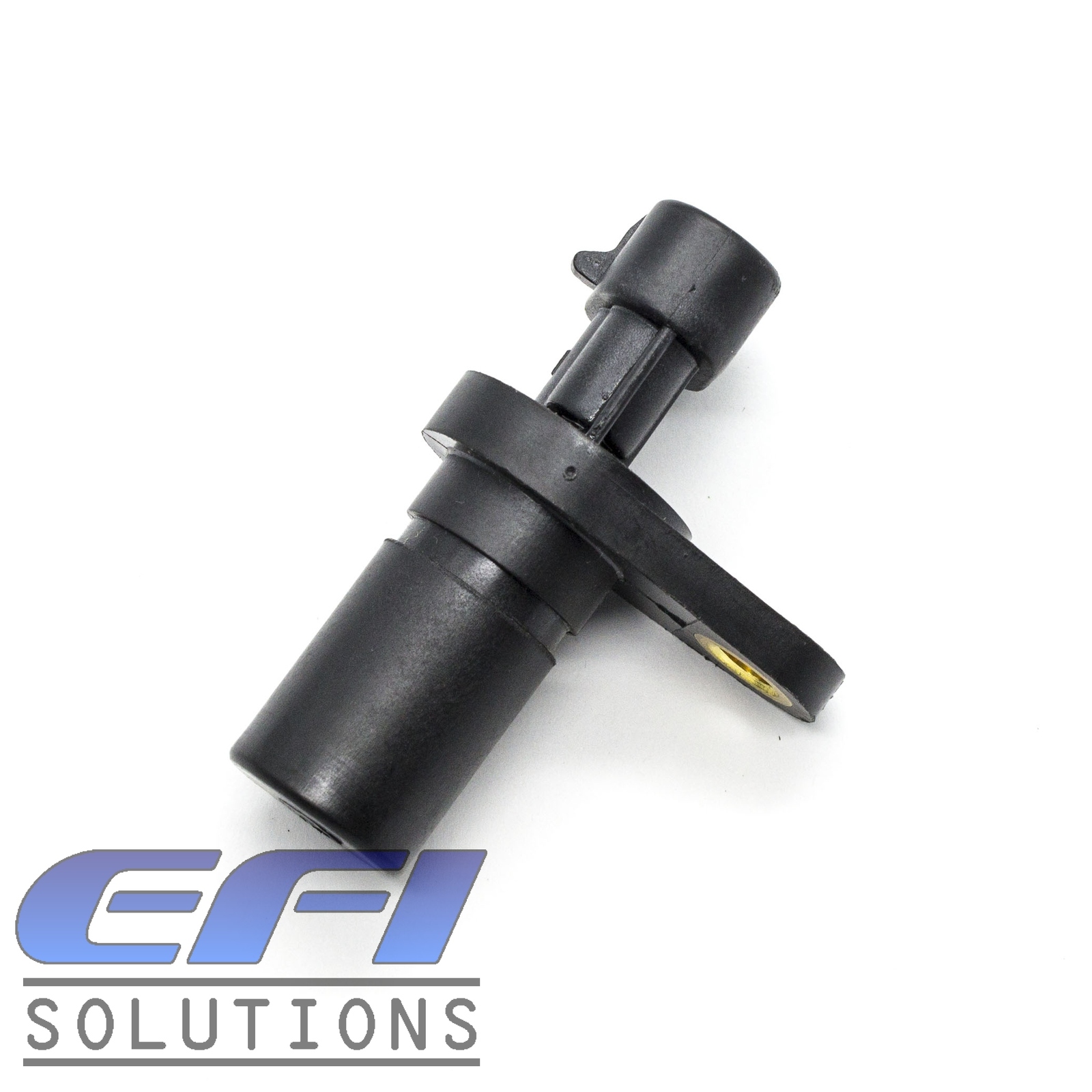

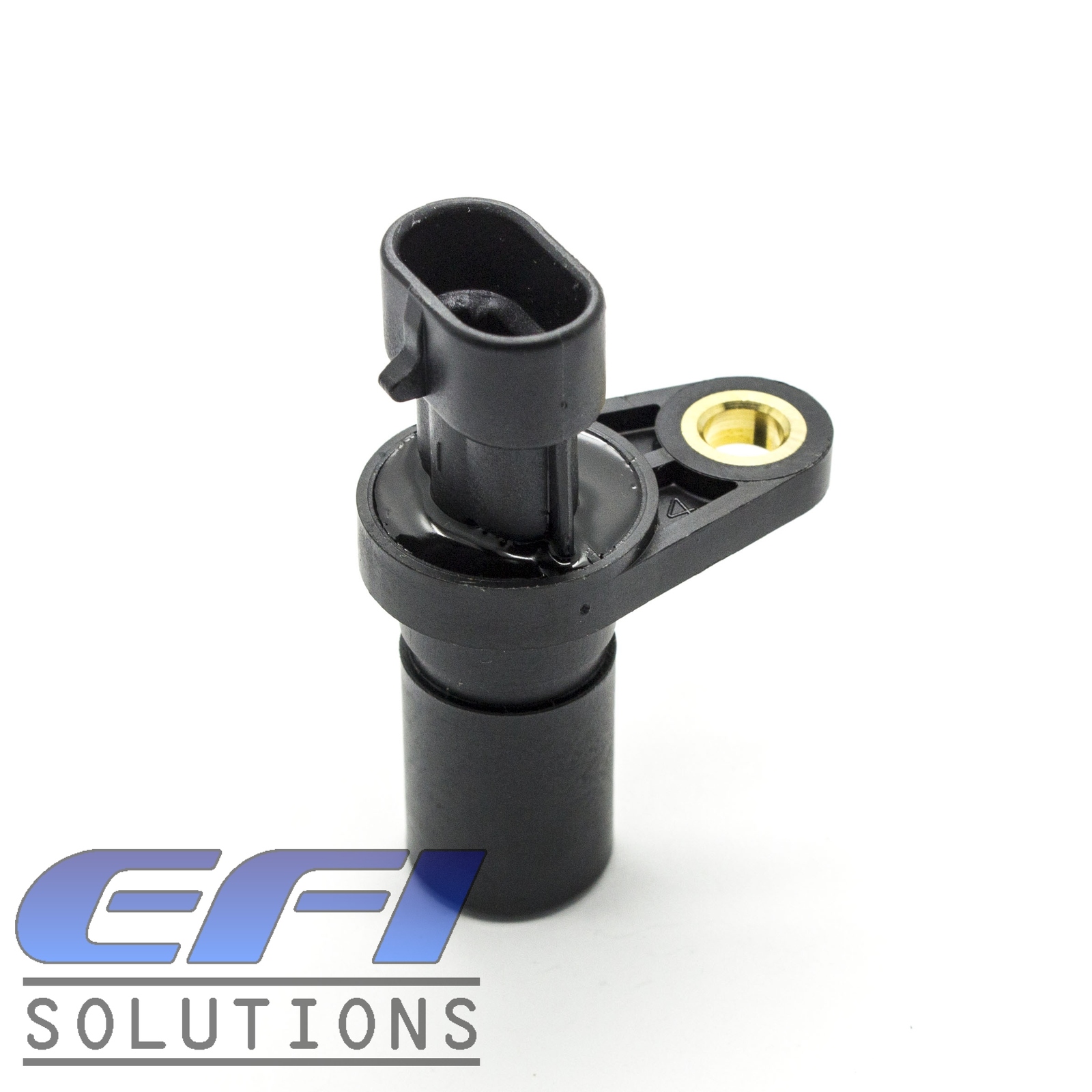

Genuine ZF / Cherry hall sensor in GT101 style housing. Great replacement sensor for the discontinued Honywell GT101 sensors.

Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output.

Great for use with crank triggers and cam signals.

The PDF Datasheet Can Be Found Above

Info:
Housing: GT101 Style
Bolt Hole Diameter: 6.5mm
Bolt Hole Offset: 22.0mm

Features:
From near zero speed up to 15 kHz sensing capability
10 bit dynamic threshold direction offers:
Automatically adjusting magnetic range
Self-compensating to target geometry
Compatible with unregulated power supply
ROHS compliant
IP67
Typical air gap of 1.5 mm*
​Plastic Body

Typical Applications:
Engine Speed
Speedometers
Anti-lock braking systems
Exercise equipment
CNC machine tools

SKU 104-029
Brand ZF / Cherry
Shipping Weight 0.0400kg
MPN: GS101201
