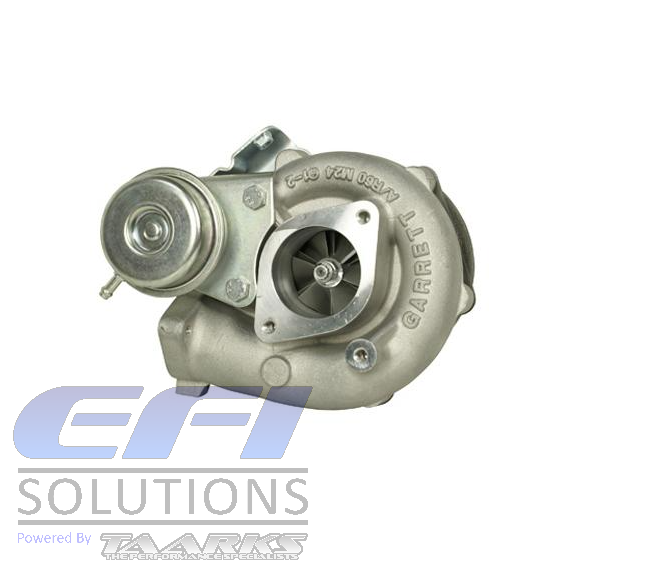

Factory Garrett JDM S15 GT2560R Turbo

Features:

  • Approx Horsepower Range for Engine Capacity: 200-280Hp (1.4L-2.2L)
  • CHRA (core): 835995-5003S
  • Compressor Housing Air Ratio: 0.6
  • Compressor Wheel Inducer Size (mm): 46.48
  • Compressor Wheel Trim (mm): 60
  • Turbine Wheel Exducer Size (mm): 41.73
  • Turbine Wheel Trim (mm): 62
  • Turbine Housing & Air Ratio Size: 0.64
  • Turbine Housing Inlet Port: Single
  • Integral Wastegate: YES
  • Actuator Pressure (psi/kpa): 5.60 / 41.35
  • Water Cooled Centre Housing: YES
  • Ball Bearing: YES
SKU 215-386
Brand Garrett
Shipping Weight 7.2900kg
MPN: 836023-5004S
