Genuine Nissan heater and coolant hoses.
Use the diagrams above to locate the required hoses, fill the QTY's to the right to order the required hoses.

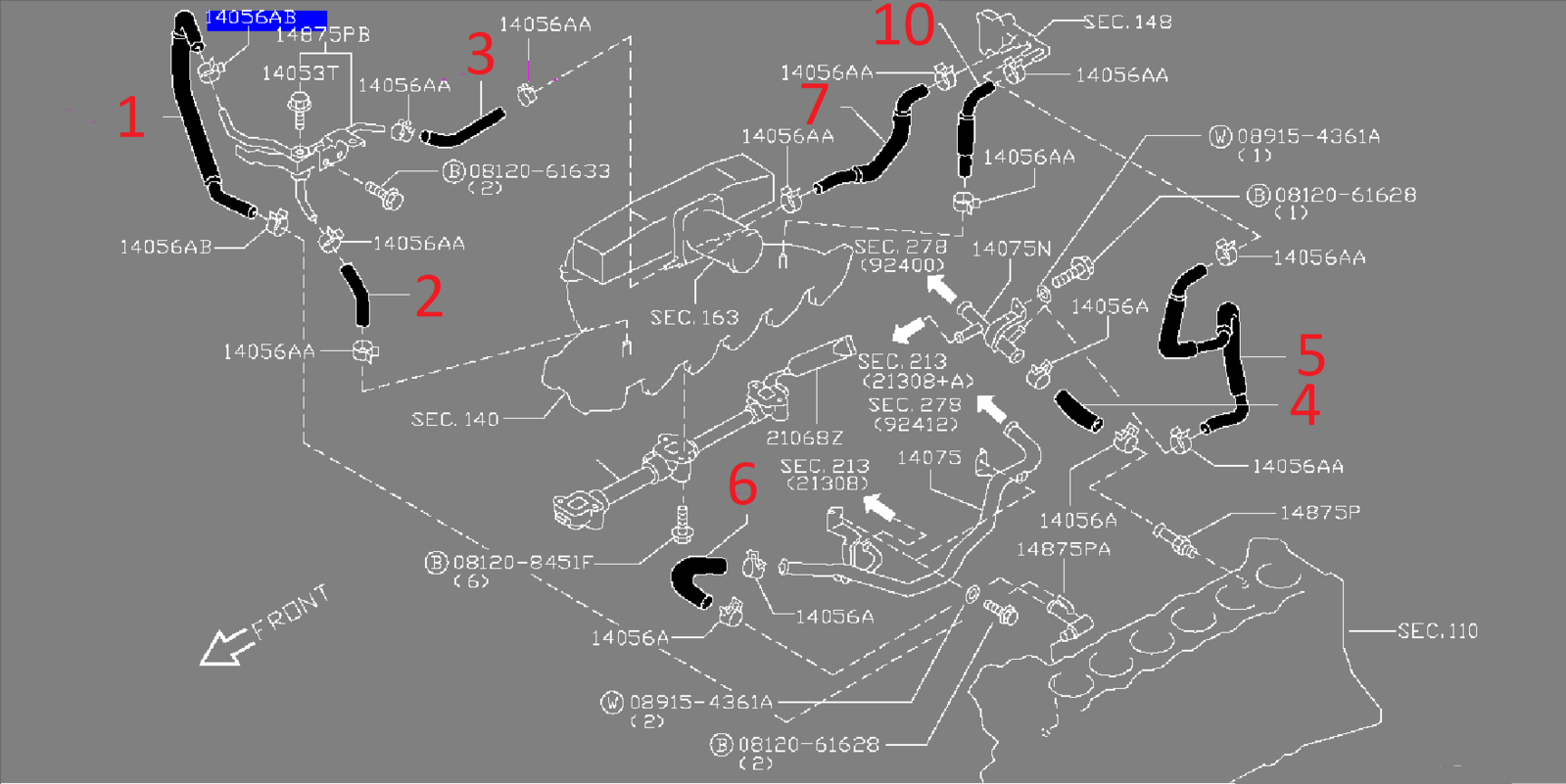

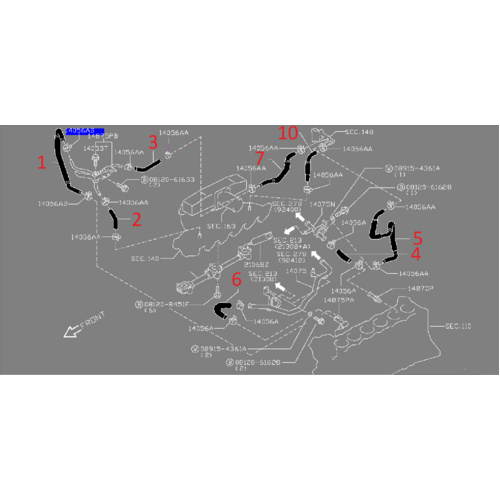

Diagram 1
Hose 1 - Connects Top of Bleeder Point to Front of Engine Block
Hose 2 - Connects Bottom of Bleed Point to the Top of Intake Runners
Hose 3 - Connects the Back of the Bleed Point to the Under Side of the Plenum
Hose 4 - Connects the Metal "4 way" Piece at the Back of the Back of the Block
Hose 5 - Connects the Metal "4 way" Piece to the Idle Air Control Valve
Hose 6 - Connects the Metal Pipe under the Plenum to the Front of the Engine Block
Hose 7 - Connects the Under Side of the Intake Plenum to the Idle Air Control Valve
Hose 10 - Connects the Idle Air Control Valve to the Top of the Intake Runners

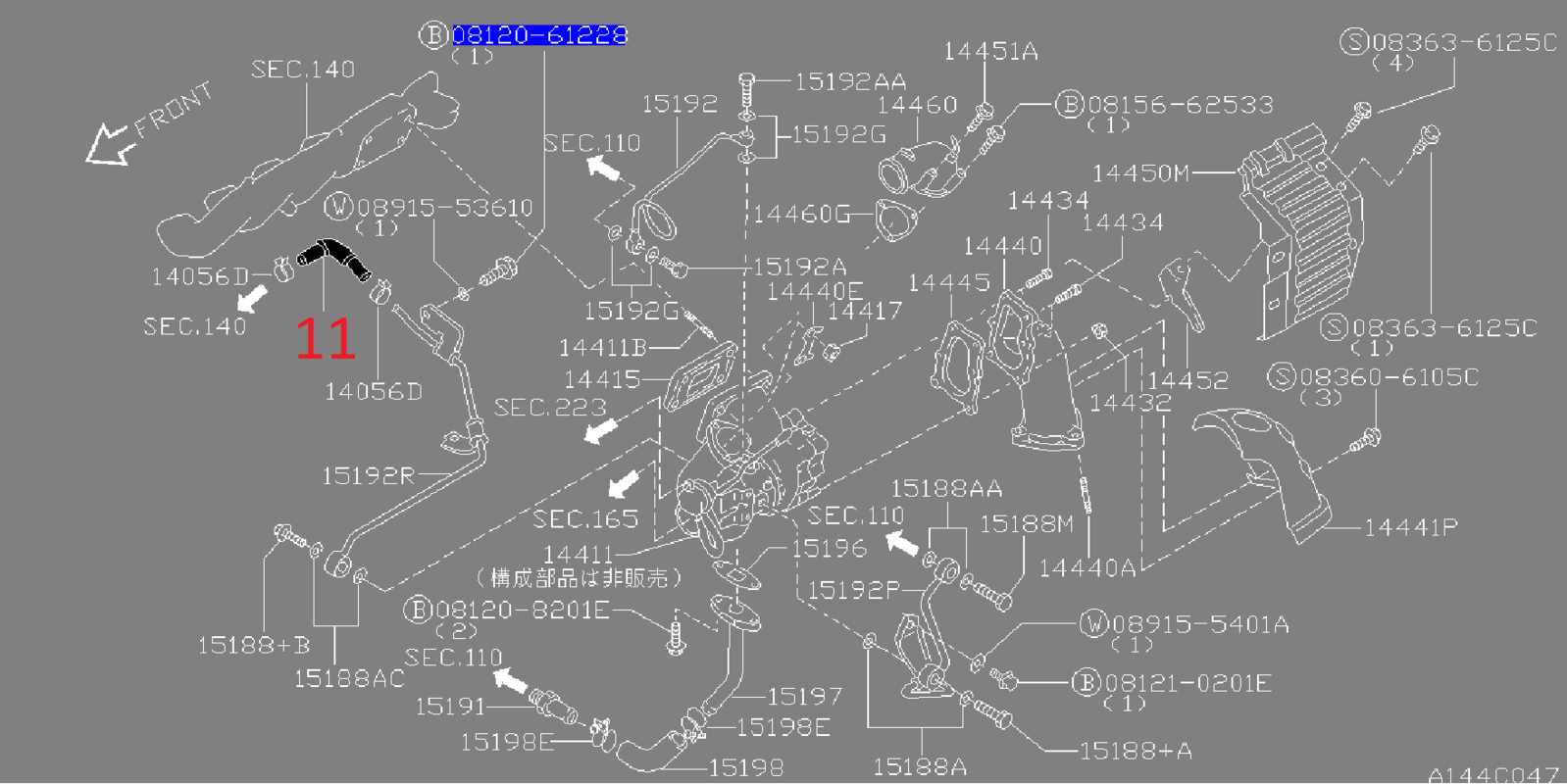

Diagram 2
Hose 11 - Turbo Water Hardline to Rear of the Intake Runners

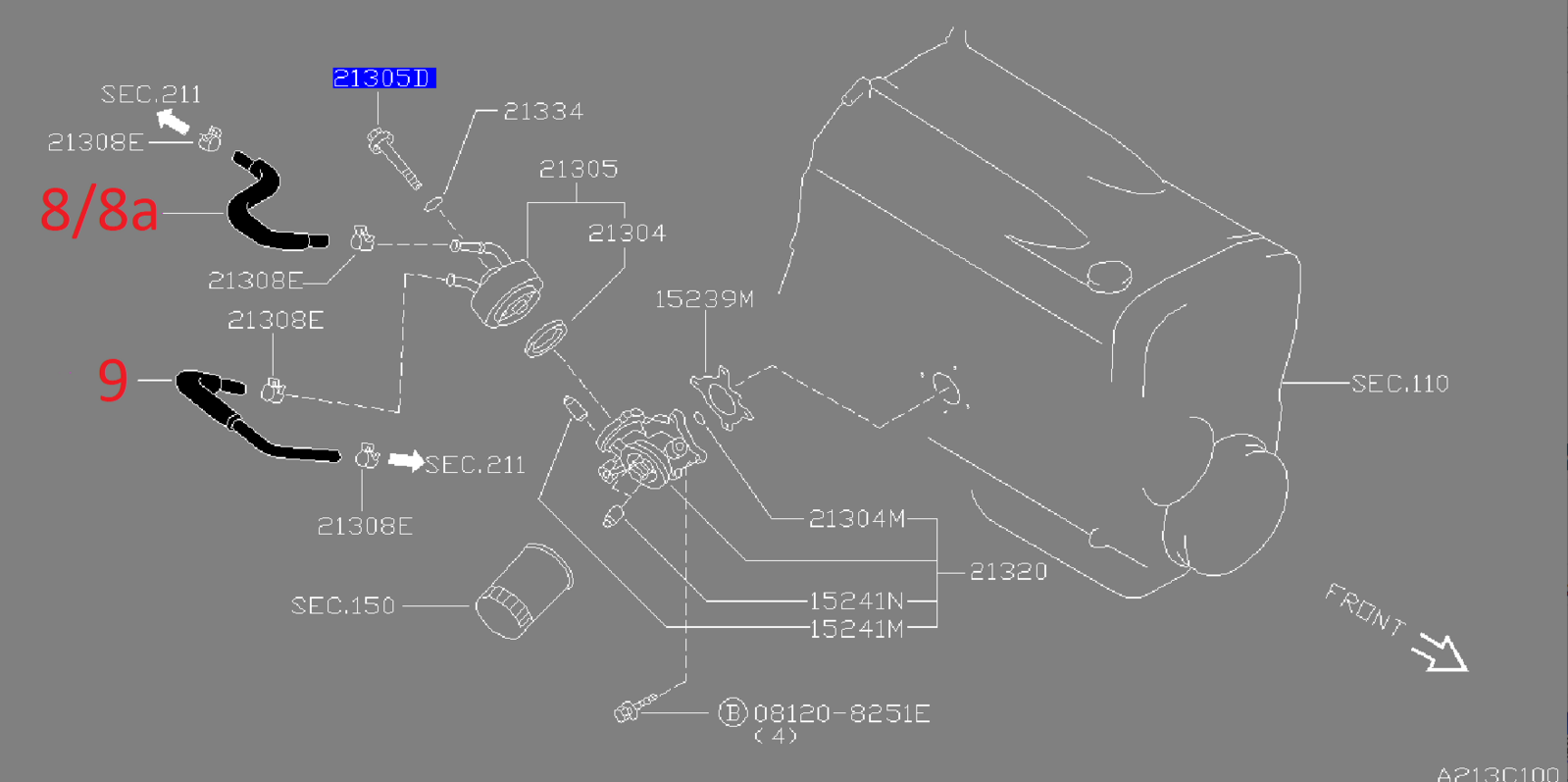

Diagram 3
Hose 8 - Oil Cooler Hose Upper "Years: 05/1998 - 10/1999"
Hose 8a - Oil Cooler Hose Upper "Years: 10/1999 - onwards"
Hose 9 - Oil Cooler Hose Lower

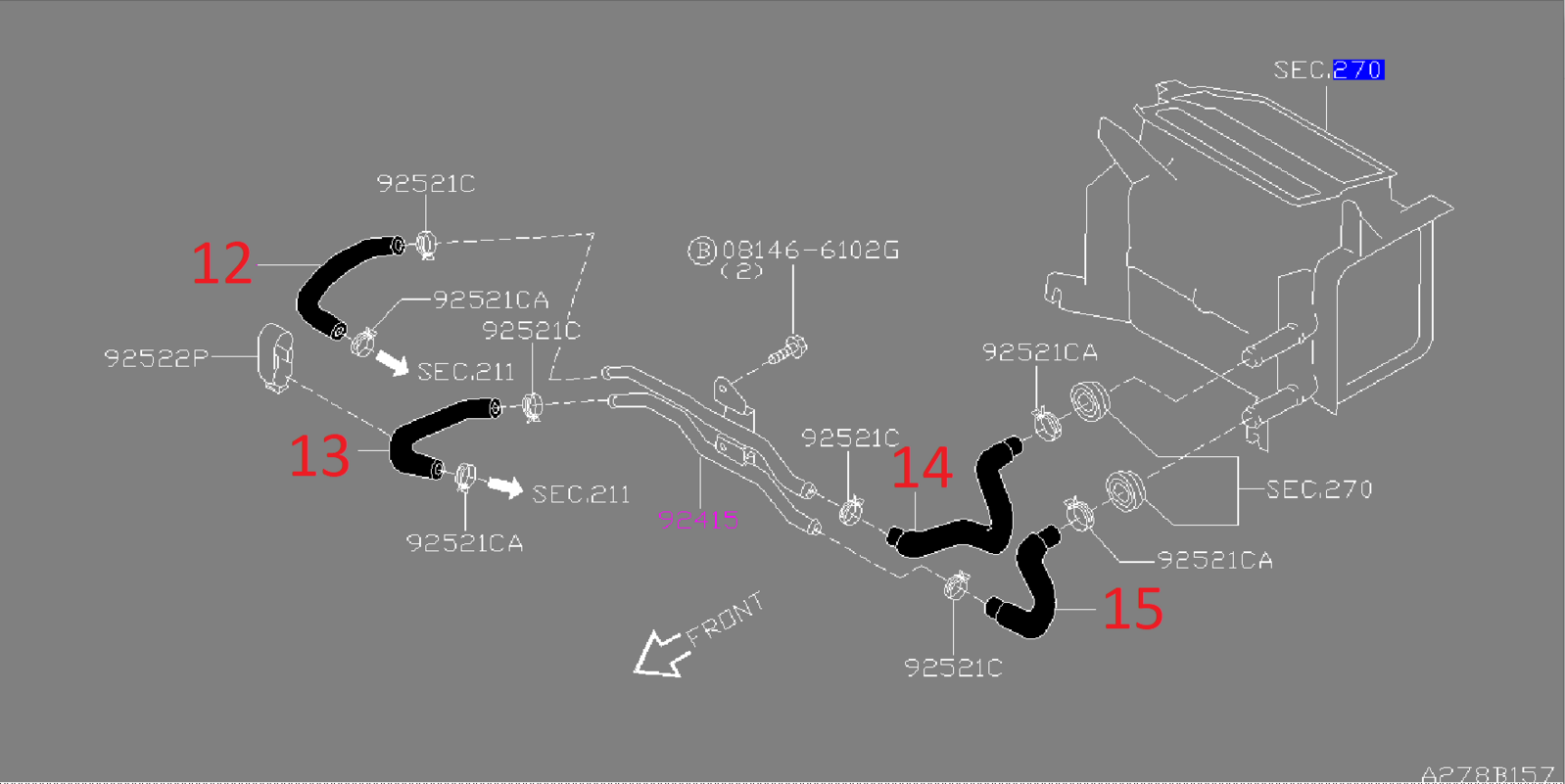

Diagram 4
Hose 12 - Top Heater Hose from Engine to Firewall Joiner
Hose 13 - Bottom Heater Hose from Engine to Firewall Joiner
Hose 14 - Top Heater Hose from Firewall Joiner to Heater Core
Hose 15 - Bottom Heater Hose from Firewall Joiner to Heater Core
Application:
R34 Skyline RB25DET
Heater and Coolant Hoses (RB25DET) "R34"
SKU: 202-162
BRAND: Genuine Nissan
Customise Your Purchase
![Hose 1 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-163.jpg)
![Hose 2 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-164.jpg)
![Hose 3 - R33/R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-091.jpg)
![Hose 4 - R33/R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-096.jpg)
![Hose 5 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-165.jpg)
![Hose 6 - R33/R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-095.jpg)
![Hose 7 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-166.jpg)
![Hose 8 - R33/R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-101.jpg)
![Hose 8a - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-167.jpg)
![Hose 9 - R33/R34 "RB25"](https://www.efisolutions.com.au/assets/images/Google/202-100.jpg)
![Hose 10 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-168.jpg)
![Hose 11 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-169.jpg)
![Hose 12 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-170.jpg)
![Hose 13 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-171.jpg)
![Hose 14 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-172.jpg)
![Hose 15 - R34 RB25](https://www.efisolutions.com.au/assets/images/Google/202-173.jpg)
Genuine Nissan heater and coolant hoses.
Use the diagrams above to locate the required hoses, fill the QTY's to the right to order the required hoses.
Diagram 1
Hose 1 - Connects Top of Bleeder Point to Front of Engine Block
Hose 2 - Connects Bottom of Bleed Point to the Top of Intake Runners
Hose 3 - Connects the Back of the Bleed Point to the Under Side of the Plenum
Hose 4 - Connects the Metal "4 way" Piece at the Back of the Back of the Block
Hose 5 - Connects the Metal "4 way" Piece to the Idle Air Control Valve
Hose 6 - Connects the Metal Pipe under the Plenum to the Front of the Engine Block
Hose 7 - Connects the Under Side of the Intake Plenum to the Idle Air Control Valve
Hose 10 - Connects the Idle Air Control Valve to the Top of the Intake Runners
Diagram 2
Hose 11 - Turbo Water Hardline to Rear of the Intake Runners
Diagram 3
Hose 8 - Oil Cooler Hose Upper "Years: 05/1998 - 10/1999"
Hose 8a - Oil Cooler Hose Upper "Years: 10/1999 - onwards"
Hose 9 - Oil Cooler Hose Lower
Diagram 4
Hose 12 - Top Heater Hose from Engine to Firewall Joiner
Hose 13 - Bottom Heater Hose from Engine to Firewall Joiner
Hose 14 - Top Heater Hose from Firewall Joiner to Heater Core
Hose 15 - Bottom Heater Hose from Firewall Joiner to Heater Core
Application:
R34 Skyline RB25DET
SKU | 202-162 |
Brand | Genuine Nissan | MPN: | 202-162 |
