Power Steering Bracket v2 (SR20) "S14, S15"

Rated 5/5 based on 8 reviews.

SKU: 402-007

AU$198.00


What is Afterpay?

Make 4 interest-free fortnightly payments and receive your order now. On orders $99 to $2,000



6 months interest free on orders up to $5000

Balancer Type


Calculate Shipping

**Updated to v2. After the overwhelming success of our low mount power steering brackets we have updated the design. The design is now machined from 1 solid piece of 6061-T6 aluminum eliminating the need to bolt the unit together. This makes it stronger and lighter.

Power steering pump relocation kit.

Please note that this kit will not work with the A/C compressor installed. This kit will not suit HICAS equipped S14's.

This kit moves the power steering pump on an SR20 down to where the A/C compressor would normally be.

The kit comes with everything needed for the conversion including a new belt. (belt brand will vary depending on selected combination)

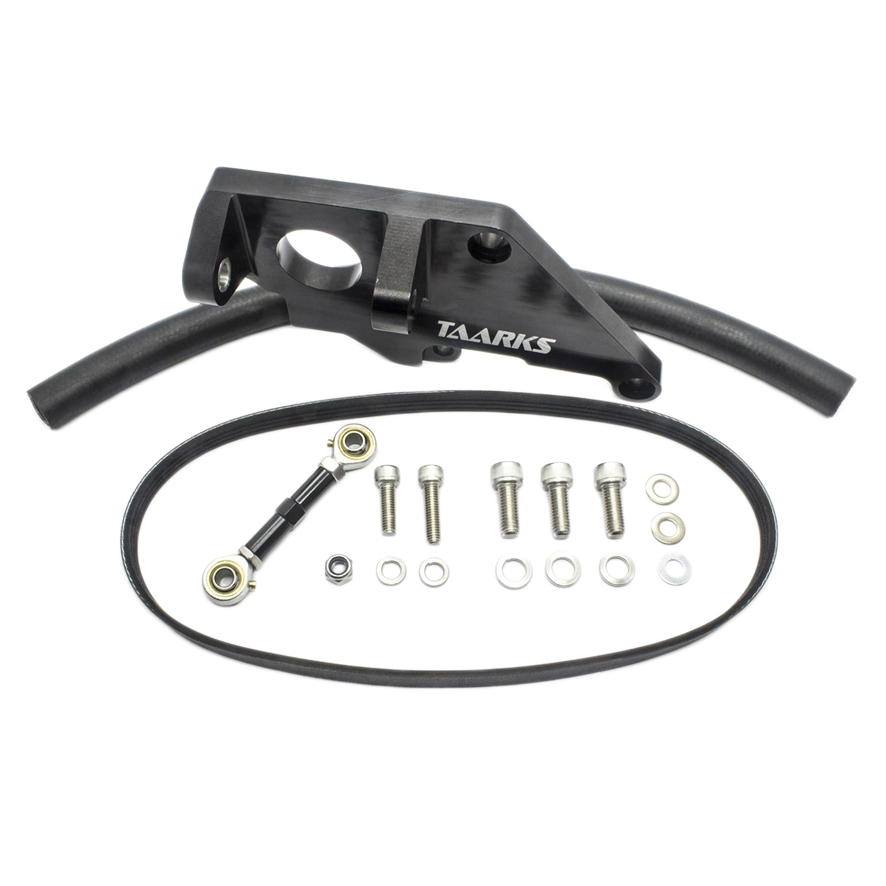

The kit includes:
1x Base Plate
1x Chromoly Insert
1x Adjuster with Rod Ends
1x Fan Belt (Brand will vary depending on the balancer selected)
1x Length of Power Steering Line
All stainless steel bolts, nuts and washers.

**NOTE: Ross balancers come with stock ratios as standard, if you have a special order underdriven ross balancer you will need to find your own suitable belt.



Install Guide

(402-007)

SKU 402-007
Brand TAARKS
Shipping Weight 1.4950kg
MPN: 800006

Great update

By: on 19 January 2021
I’ve been wanting to move my power steering pump down out of the way for a while; as an added bonus it shaved several lbs versus the OEM bracket. This was one of the easiest and straightforward aftermarket installs I’ve done in the 18 years of owning this car. Everything came nicely packaged and quickly. I haven’t driven since updating this, but so far everything seems about perfect.
(5)

Awesome bit of kit

By: on 25 July 2017
Perfect little bit of kit for cleaning up the engine bay and saving a little bit of weight from OEM bracket.
(5)

power steering bracket.

By: on 26 July 2016
great fitment. belt just a little to long.
(5)

Power Steering bracket purchase

By: on 2 June 2016
Bought this - arrived within 3 days of me buying it. construction looks great. Cant wait to put it on!
(5)

PS bracket with ATI damper

By: on 17 September 2015
Overall Im pretty pleased with the product. The finish on the bracket it great and adds a nice touch to the engine bay by placing the PS pump out of sight within an hours worth of wrench time. I have an ATI super damper and decided to use the bracket as solution to keep my PS belt from rubbing the face of the damper. Even with the relocation the belt still slightly rubs. I have verified that I have the correct damper and saw the the rubbing issue on another SR. When I did install the belt I had to install it with the adjuster fully open with minimal threads, so I used lock blue lock tight. A longer adjuster is the only thing I'd change.
(5)
