THE BRUSHLESS FUEL PUMP PERFORMANCE STANDARD

Brushless Pump Specifications:

• 550+ LPH @ 13.5V / 40 psi
• Capable up to 1000+ HP
• High flow, high pressure
• Reduced noise
• Suitable for both naturally aspirated and boosted applications
• 38mm Dia Body, 155mm Total Height
• 3/8 Barb Out

Brushless Pumps must run a controller, Connecting directly to 12v will damage this unit instantly. More Information can be found in the attached PDF.

IN-TANK BRUSHLESS DESIGN PACKED WITH POWER

The BKS1001 is the next generation of our popular BKS1000 high pressure direct-fit fuel pump kit. Now with PWM (pulse-width modulation) control, you’ll enjoy a true three-step controller with functions for 100% duty cycle, 50% duty cycle by grounding the command wire, and full PWM command by wiring the input to a 100Hz battery level PWM signal. More customization at the controller level means more power for your ride

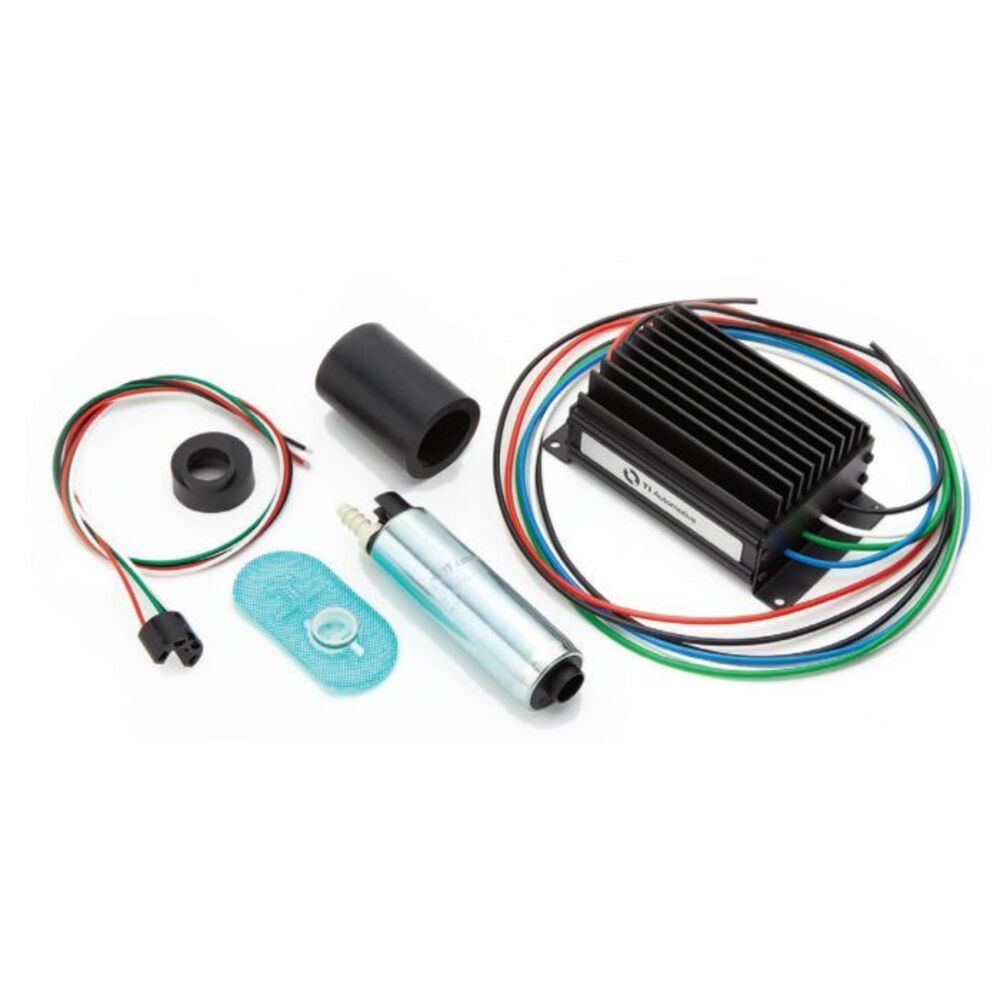

New brushless in-tank fuel pump kit, BKS1001 is capable of supporting up to 1000 HP, the kit includes TI Automotive’s in-tank brushless screw pump and a stand-alone pump controller with simple power and ground connectivity designed to provide optimal output of the in-tank screw pump. Included in the kit are an inlet filter, wiring harness, instruction sheet, and wiring diagram to assist with user installation. The BKS1000 kit has been designed, manufactured and tested to strict engineering standards.
