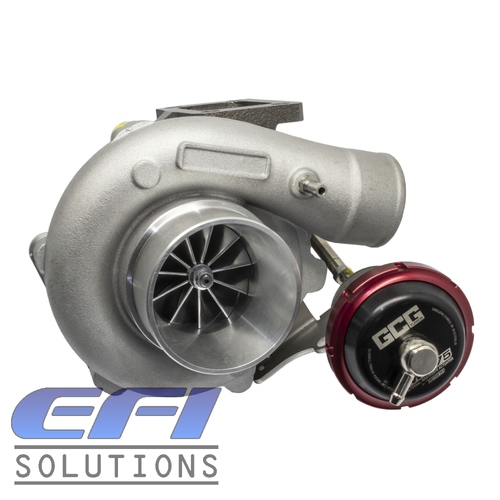

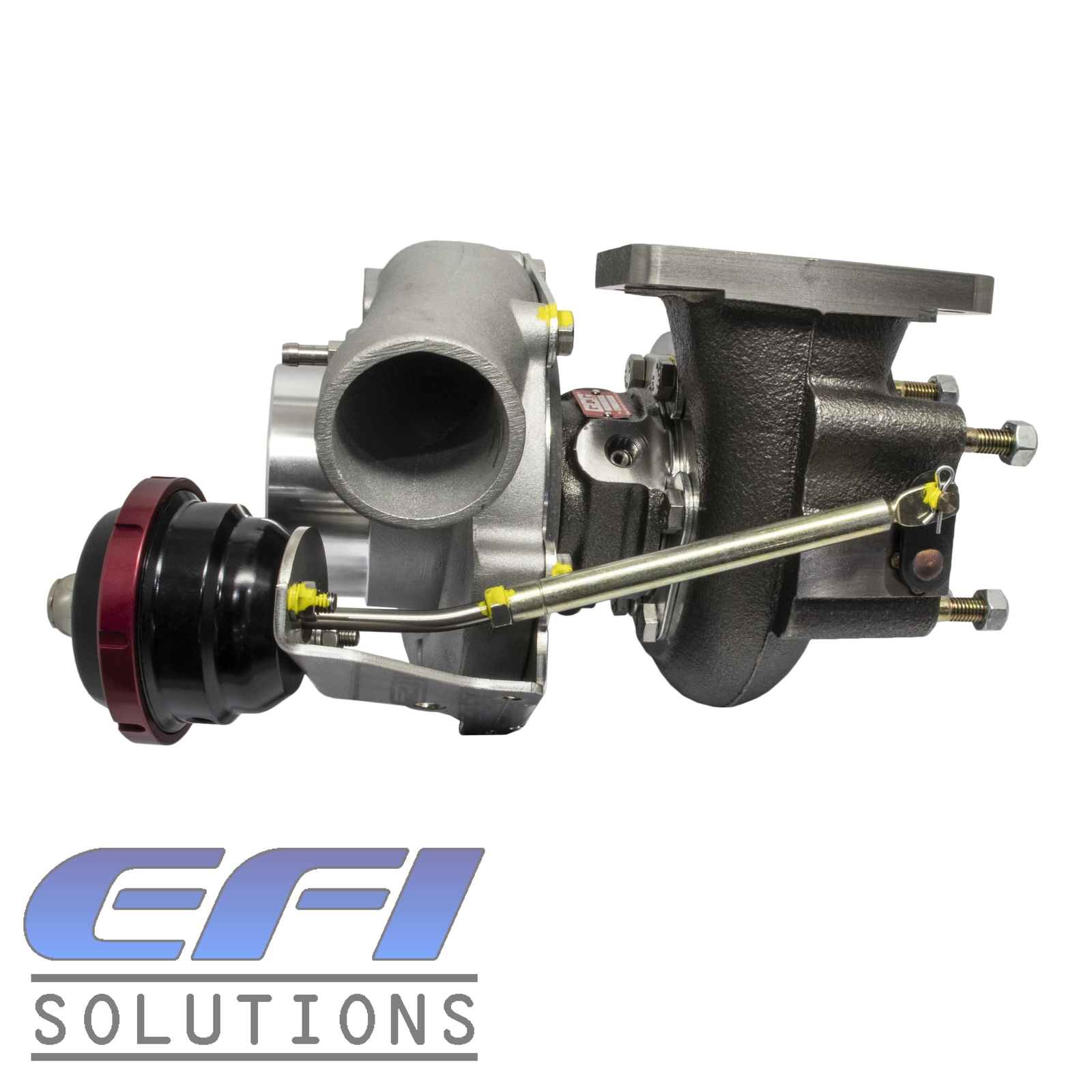

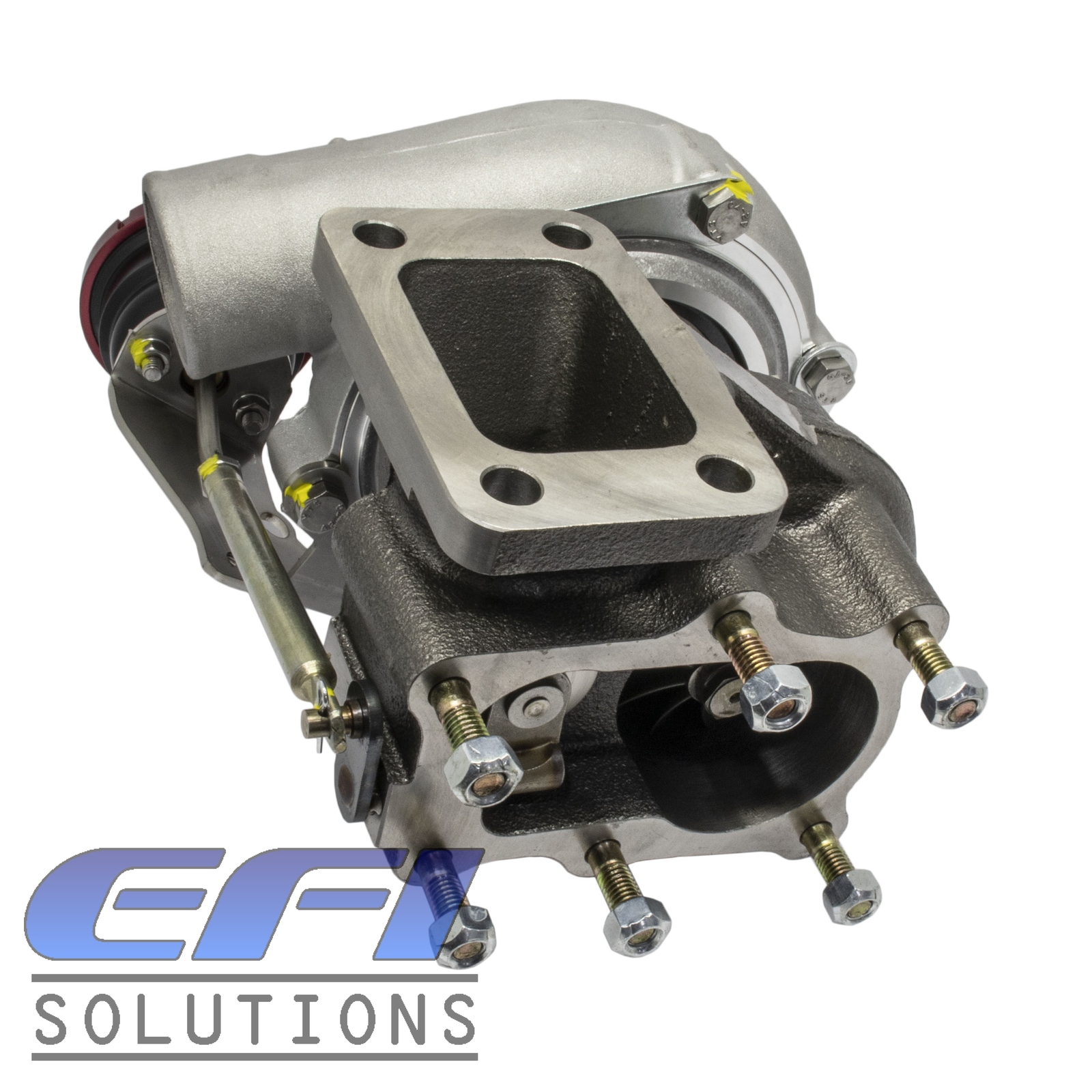

GCG Special Build Complete GTX3076R to suit RB20DET and RB25DET

These are the easiest upgrade on the factory exhaust manifold and great for the street with a balance of power and response.

This Turbocharger is a direct replacement for the Hitachi ceramic wheeled factory Turbochargers, with minimal modifications required for fitment (see below)

  • Bearing Type: Ball Bearing
  • Cooling System: Oil & Water Cooled
  • Horsepower: 300 - 500hp
  • Application: Nissan RB20DET / RB25DET (Skyline, Stagea, Cefiro)
  • Actuator: GCG Billet 14.7psi (supplied with additional 5psi spring to bring the minimum boost preset to 19psi if required)
  • Expected Power: 250 - 300awkw with supporting modifications.

Product Features:

  • Turbine Housing - 0.73a/r Turbine Housing allows for good mid range and top end power on modified RB20DET engines, and even greater response and power on RB25DET engines.

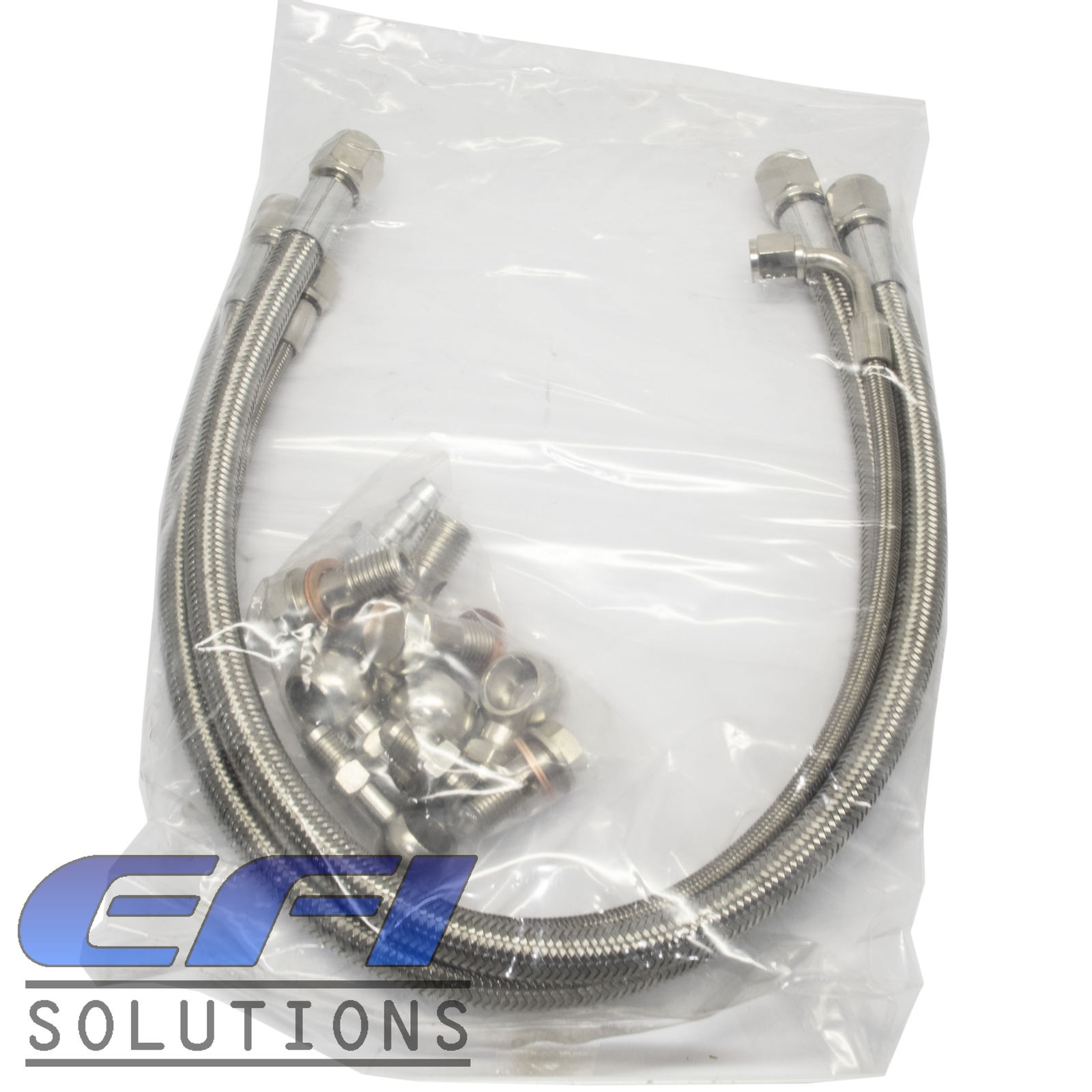

  • Factory Turbo Orientation - Oil Feed, Oil Drain and Water Lines are all included, and the orientation is in an identical position to the factory setup, allowing for easy re-fitment.
  • Factory Turbo Position - These Turbochargers still look very similar to a factory unit, and utilize the factory manifold, and exhaust system.
  • Ultimate Boost Control - GCG Billet Actuator with spring options allow for a number of different preset boost combinations.
  • Supporting Re-Fitment Parts - Exhaust studs, locking nuts for the dump pipe, and a complete turbocharger gasket kit is included.

Product Notes:

  • Hot Side Intercooler Pipe, and Air Intake Pipe modifications will be required.

SKU 215-360
Brand GCG Turbo's
Shipping Weight 8.7500kg
MPN: 803713-RB25
